Expander, Förankring

Concrete expander for medium-heavy loads. Simple installation. Intended for installation in stone, reinforced concrete, cracked and non-cracked concrete. Approved for cracked and uncracked concrete, can be used for various applications that require approval and high load values. Length marking on top of bolt for easy inspection and quality control. It is important that the borehole is cleaned thoroughly to get the correct function. For outdoor use.
Material: Carbon steel.
Surface treatment: Hot-dip galvanized.
Corrosivity class: C3 .

Rubber expander can be used in all types of materials, solid or filled with holes. Supplied with or without screw.
Materials: Synthetic rubber plug, with brass nut thread.

Concrete expander for medium-heavy loads. Simple installation. Intended for installation in stone, reinforced concrete and non-cracked concrete. Approved for uncracked concrete, can be used for various applications that require approval and high load values. Length marking on top of bolt for easy inspection and quality control. It is important that the borehole is cleaned thoroughly to get the correct function. Two installation depths for M8, M10, M12, M16 and M20. For indoor use.
Material: Carbon steel.
Surface treatment: Bright galvanized.

Concrete expander for medium-heavy loads. Simple installation. Intended for installation in stone, reinforced concrete, cracked and non-cracked concrete. Approved for cracked and uncracked concrete, can be used for various applications that require approval and high load values. Length marking on top of bolt for easy inspection and quality control. It is important that the borehole is cleaned thoroughly to get the correct function. For indoor use.
Material: Carbon steel.
Surface treatment: Bright galvanized.

Användningsområde

Beskrivning

Montering

Universal anchoring compound of the two-component type. For mounting threaded rods and rebar in cracked and uncracked concrete, solid and hollow brick and lightweight concrete. ETA-approved for cracked, non-cracked concrete, masonry and for reinforcement. Expansion-free attachment with very high performance in all building materials. Maximum performance for enhanced security. Approved for use in water-filled boreholes, which makes it possible to use the compound under the absolute toughest conditions. Can be installed down to -10°C. ETA approval for post-injected reinforcement. Supplied with two mixing tubes.

Approved/Certified according to:
ETA-20/0603
ETA-20/0728
ETA-20/0729
DoP No. 0231
DoP No. 0232
DoP No. 0331
ESR-2786
20046/15515
22044-enshort
EPDDBCFIW20220088IBE2DE

GUNNEBO INDUSTRIES

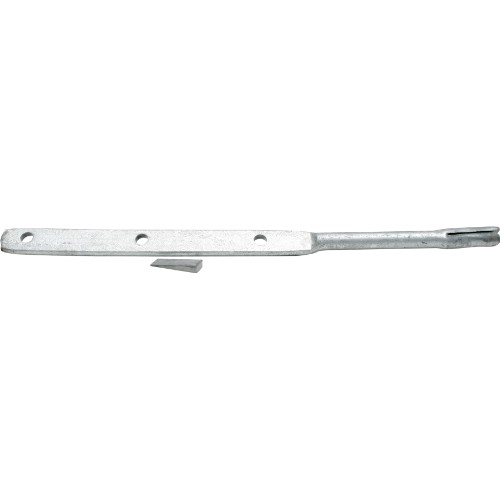

Galvanized. With wedge. For anchoring boats or bracing fences.
*The value Drill diameter is approximate.

Expander bolt for indoor and outdoor use. Intended for installation in uncracked concrete min. B20/25, e.g. assembly of steel, wooden studs, fittings, railings etc. against a concrete base. For medium to heavy loads. The drill hole in the concrete must have the same diameter as the expander bolt, i.e. push-through installation. The expander is hammered in with the help of a hammer, when the nut comes into contact with the detail substrate, the expander is locked with the nut. When the nut is tightened, the clip slides up onto the conical part, which then creates an expansion. Delivered in a plastic box. Corrosivity class C5. Approved according to ETA-13/0370.
Material: Stainless acid-resistant steel (A4).
* Not ETA approved

Gypsum plug intended for easy installation in 1-layer plaster. Very quick assembly, carefully hammered into the plaster with a hammer. Fits wood screws with diameter 3.0-5.0 mm, minimum length 30 mm. For indoor use. Delivered in a plastic box.
Material: Steel.
Surface treatment: Bright galvanized.

Metal expander with metric screw. For fastening in board materials such as plasterboard and chipboard. For indoor use.
Surface treatment: Electro-galvanized.

Fyra pinnskruvutdragare av kromvanadiumstål med 6-kant nyckelgrepp och invändig 1/2"-anslutning.

Innehåll

• 6
• 8
• 10
• 12

MX nut is a screw anchor for thin materials such as sheet metal, plastic etc. Maximum material thickness, see grip area in the table below. Gripping wings expand and grip the material. The assembly is done blindly from one side, which makes the product extra useful.
Design: Flat head, collared sleeve with metric thread.
Material: Steel.
Surface treatment: Bright galvanized 6 µm (Fe/ZnC1). Other surface treatment on request.

Board plug is a plug that fits all materials, within the specified board thickness. Suitable for lighter attachments.

Ankarmassa, Hybrid Resin. Styrenfri. Kan användas vid ett stort urval av monteringsapplikationer med gängstänger, pinnbultar och armeringsjärn i sprucken eller osprucken betong.

Fully forged rock eyelet. For mounting in rocks. Hot-dip galvanized. Supplied with wedge for locking.
*The value of Drill diameter is approximate.

Fully forged, hot-dip galvanized. For fixing in rock and concrete. Supplied with wedge for locking.

Blow pump for cleaning boreholes before installation in concrete, brick and stone of anchor compound and expander bolt etc.

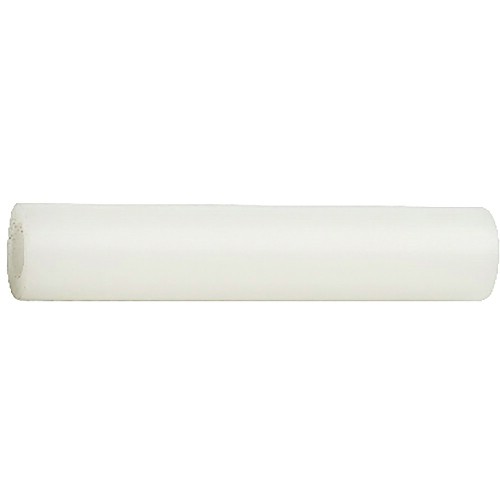

Distance tube. Heat resistant -15°C - +90°C.

High-quality hot-dip galvanized expander for pre-assembly, through-hole assembly and spacer assembly. Used for mounting metal and wooden structures in cracked and uncracked concrete and natural stone. Always tighten to specified torque. The expander goes easily through the material during push-through installation and is easy to tap into the concrete. Two setting depths in the dimensions 10 and 12 mm where the specified measurement and dimension are indicated on the expander. Marking on head for length and dimension. For indoor and outdoor use. European type approval, ETA 18/0219 Option 1 - cracked and uncracked concrete.
Material: Steel.
Surface treatment: Hot-dip galvanized.
Corrosivity class : C4.

Stud screw expander intended for use with medium and large loads in hard solid materials such as concrete and natural stone. For indoor use. ETA approval Option 1.
Material: Bright galvanized steel.
* = Not approved according to ETA.

Expander for mounting heavier objects in concrete. The upper part is externally threaded and fitted with a nut and washer. In the lower part there is a collar that expands and is wedged into the substrate. Installation depth instructions on the expander ensure correct installation depth, standard or reduced. For indoor use. ETA Approved - ETA-08/0339.
Max detail thickness refers to installation depth Standard / Reduced.
Surface treatment: Galvanized.

Expander nail intended for easier installation in concrete. The expansion of the spring steel in the full length of the nail results in a strong and secure attachment. Also works in other materials such as brick and natural stone.
Materials: Hardened spring steel
Surface treatment: Electro-galvanized and yellow chromated.

Mounted with hammer in pre-drilled hole 6 mm. The expander expands under load.

Screwed directly into the plaster wall, without pre-drilling. Driva and Driva Plus made of die-cast zinc alloy.

Self-drilling plaster bracket with screw.

Gypsum plug made of steel. For quick and easy installation in plasterboard 3-13 mm alt. door board. Easy to assemble. No pre-drilling is required. Mounted by hammering it into the plasterboard or lightweight concrete. Then hardened wood screw diameter 3.5-4.5 mm is used. Electro-galvanized.
Practical load capacity: 0.15 kN (tensile force), 0.30 kN (transverse force).

Gypsum plug intended for easy installation in 2-layer plaster. Very quick assembly, carefully hammered into the plaster with a hammer. Fits wood screws with diameter 3.0-5.0 mm, minimum length 30 mm. For indoor use. Delivered in a plastic box.
Material: Steel.
Surface treatment: Bright galvanized.

Anti-vibration rubber expander that is pre-assembled. Sealing, prevents moisture penetration. Controlled expansion. Simple assembly without special tools. Used for single and double plasterboard, hollow stone, Leca, chipboard or similar materials.
Drill diameter = Plug diameter.

Hot-dip galvanized. FZV.

Gypsum anchors are an attachment in plasterboard. can also be used to advantage in shavings & fiber boards.

Gypsum anchor for fastenings in plasterboard. Also for chipboard and fibreboard. Design: Flat head with 2 locking pins. Nut sleeve with M thread. 3- 5 gripper wings depending on size.
Material: Steel.
Surface treatment: Bright galvanized.

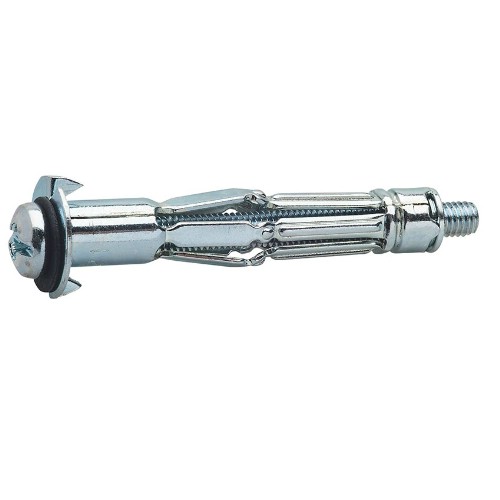

Metal expander for safe hanging of paintings, shelves, cabinets, etc. in sheet materials such as plasterboard, chipboard or fiberboard. Screw with 13 mm hex head and slot. The metal gripping wings lock and distribute the load. Locking pins hold the anchor in the disc and the fiber washer under the screw head reduces friction. For indoor use. Mounted most easily with mounting tools for metal expanders, but can also be mounted with a screwdriver alone.
Material: Steel.
Surface treatment: Bright galvanized.

Sleeve (without screw) for plaster anchor

Assembly tool with SDS-Plus attachment. Used for fast and efficient mounting of expander screws.

Plastic disc mount for quick and easy installation. For installation in boards that are 3 to 35 mm thick. Provides a stable anchorage. Handles high loads. Handles different board thicknesses. Corrosion resistant. Supplied with galvanized screw with cylindrical head.

Rivet nut with flat head and countersunk body designed to be mounted in soft or brittle materials such as plastic, paper or glass. Its four legs expand behind the parent material and provide excellent pullout resistance, especially in soft materials.

Assembly tool for safe and quick installation of Ejot impact anchors. Always use the correct tool for mounting impact anchors.
Material: Steel
Surface treatment: Bright galvanized

Assembly tool for safe and quick installation of Ejot impact anchors. Always use the correct tool for mounting impact anchors. Equipped with hand protection.
Material: Steel/Polyethylene
Surface treatment: Bright galvanized

Mandrel for impact anchors.

Grooved wooden dowel of beech. SB packed.
