1000 V-verktyg

Multifunctional pliers for electrical installation, 6 functions in one and the same pliers. Insulated handle with multi-component coating, VDE tested. Insulation according to DIN EN 60900, IEC 60900. For work under voltage up to 1000 V (by specially trained personnel). Slim design for optimized accessibility. Screwed joint for extra precision. Chrome-plated design, made of high-quality special tool steel, forged, oil-hardened in several stages. Functions for gripping flat and round material, for bending, deburring, cutting cable, removing insulation and pressing end sleeves. With opening spring in the joint, the cutters are kept closed by the activated detent while the other functions remain active, with the intelligent locking mechanism you can grip without opening the pliers, the cutter remains closed and protected. Smooth gripping surfaces at the tip for gripping single conductors without damaging them, profiled gripping surfaces and toothed derailment for gripping flat and round material. Marked outer edge on the jaw for machining boxes for flush mounting and deburring through holes. Stripping cutter for conductors 0.75-1.5 mm² and 2.5 mm². Press function for end sleeves 0.5-2.5 mm². Cable scissors with precision cutters (inductively hardened) for Cu and Al cable up to 5x 2.5 mm² / Ø 15 mm.

Flat pliers with insulation according to SS IEC 900. For work under voltage up to 1000 V (by specially trained personnel). Simple joint. Long jaws. Grooved grip surface. Chrome plated.

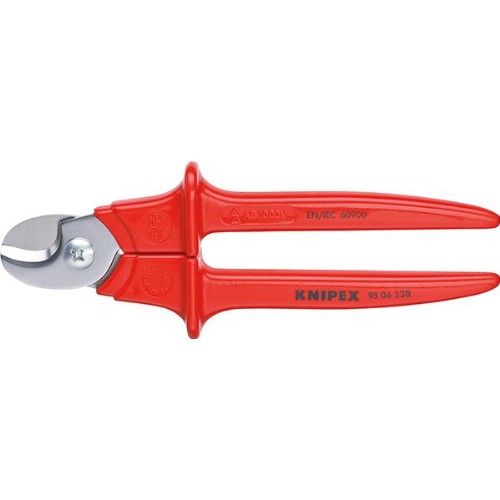

Cable cutter with insulation according to SS IEC 900, for work under voltage up to 1000 V (by specially trained personnel). For stripping cables. The knife blade is designed at the end into a flat pin, which facilitates stripping and prevents the cable conductors from being damaged. With ergonomically designed safety grip. Fixed blade.

With insulation according to SS IEC 900 for work under voltage up to 1000 volts (by specially trained personnel). Simple joint. Hardened, precision ground blades for cutting copper and aluminum cable (not for steel wire). Adjustable screw joint with anti-rotation nut. Chrome-plated.
No. 9516-200 with two cutting positions. When pre- and post-cutting, cable up to Ø 25 mm can be cut.
The cutting capacity refers to multi-wire copper cable.

Type Cobra. With insulation according to SS IEC 900 for work under voltage up to 1000 volts (by specially trained personnel). Chrome-plated, handles insulated with multi-component coating, VDE tested.
Quick adjustment by sliding directly against the workpiece. Self-locking on pipes and nuts. Gripping surfaces with specially hardened teeth. Pinch protection. Infected, oil-hardened chrome-vanadium electrical steel.

Type Alligator. With insulation according to SS IEC 900 for work under voltage up to 1000 volts (by specially trained personnel). Strong execution of chrome vanadium steel. Ribbed alligator jaws with patented tube grip.
Self-locking - when the pliers are clamped around an object, they lock into place. Chrome plated head.

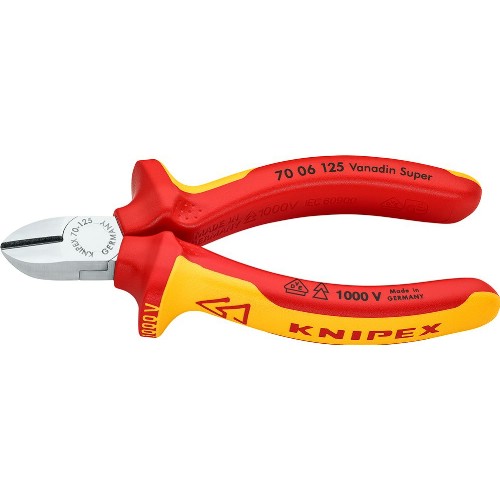

Side cutter with insulation according to SS IEC 900. For work under voltage up to 1000 V (by specially trained personnel). Simple joint. Powerful model - for hardened wire. Polished. Chrome-plated.
The cutting capacity refers to hard steel wire 1800 N/mm².

Side cutter with insulation according to SS IEC 900. For work under voltage up to 1000 V. Single joint. Strong - for hardened wire. Chrome-plated.
The cutting capacity refers to piano wire 2300 N/mm².

With insulation according to SS IEC 900 for work under voltage up to 1000 volts (by specially trained personnel). Simple joint. With adjusting screw for desired wire diameter up to 5 mm and 10 mm². With spring. Chrome-plated.
IP = Industrial pack

For internal hexagon screw with insulation according to SS IEC 900 for work under voltage up to 1000 V (by specially trained personnel). Grip shape that prevents rolling. Made of chrome vanadium steel.

Insulated screwdriver for Phillips PH screw.
Approved for work under voltage up to 1000 V.
Complies with IEC 900, EN 60900, DIN-EN 60900, VDE 0682 part 201.
Evaluation and tests of screwdrivers are carried out in in accordance with the latest national and international standards:
- individual tests in a water bath with 10 kV voltage.
- date stamped with year of manufacture.
- intensive cold tests.
Round blade of high quality steel. Black oxidized tip for maximum precision. Ergonomically developed three-component handle made of polypropylene and thermoplastic elastomer. Permanent color marking at both ends of the handles for easy identification of the correct screw tip.
DIN 7438. Tip according to DIN ISO 8764-1, ISO 8764-1.

Screwdriver set for straight slots, Phillips slots and Pozidriv slots in 6 parts. Insulated chisels for work under voltage up to 1000 V. Round insulated blade of hardened vanadium steel. Ergonomic two-component handle. Contains 1 Phillips screwdriver, 2 Pozidriv screwdrivers and 3 slotted screwdrivers.
Tested and approved according to VDE GS 1000 V 14 IEC 60900:2004

With insulation according to SS IEC 900. For work under voltage up to 1000 V (by specially trained personnel). Pointed tongs. Simple joint. Long jaws. Grooved grip surface. With side cutters. Chrome-plated.
The cutting capacity refers to hard steel wire 1800 N/mm².

With insulation according to SS IEC 900. For work under voltage up to 1000 V (by specially trained personnel). Simple joint. Long jaws. Grooved grip surface. With side cutters. Chrome-plated.
The cutting capacity refers to hard steel wire 1800 N/mm².

With insulation according to SS IEC 900. For work under voltage up to 1000 V. Single joint. Long, curved jaws 45°. Grooved grip surface. With side cutters. Chrome-plated.
The cutting capacity refers to hard steel wire 1800 N/mm².

Gloves that protect against live parts. Protects up to 1000 V according to DIN EN 60903 / IEC 60903.

Enkomponentsisolering för arbeten under spänning upp till 1000 volt.

Producerade och testade i enlighet med internationell standard IEC900 samt VDE norm DIN EN60 900.
Varje verktyg utsätts för en serie av tester innan godkännande:
10 000 volt belastning under 3 minuter (10 gånger mer än normal användning)
Värme / flamtest
Penetrations belastningstest
Drag / fasthållningstest

Tång DIN standard: 5746

Attribut

• Längd mm: 160

Multifunctional pliers for electrical installation, 6 functions in one and the same pliers. Insulated handle with multi-component coating, VDE tested. Insulation according to DIN EN 60900, IEC 60900. For work under voltage up to 1000 V (by specially trained personnel). Slim design for optimized accessibility. Screwed joint for extra precision. Chrome-plated design, made of high-quality special tool steel, forged, oil-hardened in several stages. Functions for gripping flat and round material, for bending, deburring, cutting cable, removing insulation and pressing end sleeves. With opening spring in the joint, the cutters are kept closed by the activated detent while the other functions remain active, with the intelligent locking mechanism you can grip without opening the pliers, the cutter remains closed and protected. Smooth gripping surfaces at the tip for gripping single conductors without damaging them, profiled gripping surfaces and toothed derailment for gripping flat and round material. Marked outer edge on the jaw for machining boxes for flush mounting and deburring through holes. Stripping cutter for conductors 0.75-1.5 mm² and 2.5 mm². Press function for end sleeves 0.5-2.5 mm². Cable scissors with precision cutters (inductively hardened) for Cu and Al cable up to 5x 2.5 mm² / Ø 15 mm. Built-in insulated attachment loop for tool securing.

Enkomponentsisolering för arbeten under spänning upp till 1000 volt.

Producerade och testade i enlighet med internationell standard IEC900 resp, DIN EN60 900.
Varje verktyg utsätts för en serie av tester innan godkännande:
10 000 volt belastning under 3 minuter (10 gånger mer än normal användning)
Värme / flamtest
Penetrations belastningstest
Drag / fasthållningstest

Attribut

• Längd mm: 100

Protective rubber sheet with VDE insulation according to VDE 0680/1. Protects against live parts up to 1000 volts.

Insulated sleeve made of high quality steel. For work under voltage up to 1000 V. With 2 layers of insulation. With twelve-sided Dynamic Drive profile. Not suitable for use with machines.
ISO 2725, IEC 60900, VDE certified.

With insulation according to IEC 60 900 for work under voltage up to 1000 V (by specially trained personnel). Made of chrome vanadium steel.

Isolerande matta för arbeten under spänning upp till 1000 volt.
Producerade i enlighet med  internationella standarder, IEC EN 60243-1
Materialtjocklek 3mm.

Attribut

• Dimension mm: 1200x1000

Cable cutter with insulation according to SS IEC 900, for work under voltage up to 1000 V (by specially trained personnel). For stripping cables. With ergonomically designed safety grip. Fixed blade.

In black oxidized and rust-protected special steel. Insulated and approved for work under voltage up to 1000 V.
Recommended maximum capacity: Aluminum and copper of Ø 30 mm on the cable with a carrier line (1800 N/mm²) of 6 mm.
Warning! For maximum service life, the sharpened cutting edges must never come into contact with iron material. For this purpose, the insert is equipped with a special thread cutter.
Spare parts: Insert, screw and nut, article code 2520-SH.

Chrome-plated head made of special stainless steel. With insulation according to SS IEC 900 for work under voltage up to 1000 volts (by specially trained personnel). Adjustable, single screw joint. Hardened and precision ground blades for cutting copper and aluminum cable (not for steel wire).
The cutting capacity refers to multi-wire copper cable.

Enkomponentsisolering för arbeten under spänning upp till 1000 volt.

Producerade och testade i enlighet med internationell standard IEC900 samt VDE norm DIN EN60 900.
Varje verktyg utsätts för en serie av tester innan godkännande:
10 000 volt belastning under 3 minuter (10 gånger mer än normal användning)
Värme / flamtest
Penetrations belastningstest
Drag / fasthållningstest

Tång DIN standard: 5746

Attribut

• Längd mm: 180

Combination pliers with insulation according to SS IEC 900. For work under voltage up to 1000 V (by specially trained personnel.) Single joint. With tube grip and grooved grip surfaces and side cutters. Made of chrome vanadium steel. Chrome-plated.
The cutting capacity refers to piano wire 2300 N/mm².

Combination pliers with insulation according to SS IEC 900. For work under voltage up to 1000 V (by specially trained personnel). Simple joint. With tubular grip and grooved grip surfaces. Made of special tool steel. Chrome-plated.
The cutting capacity refers to hard steel wire 1800 N/mm².

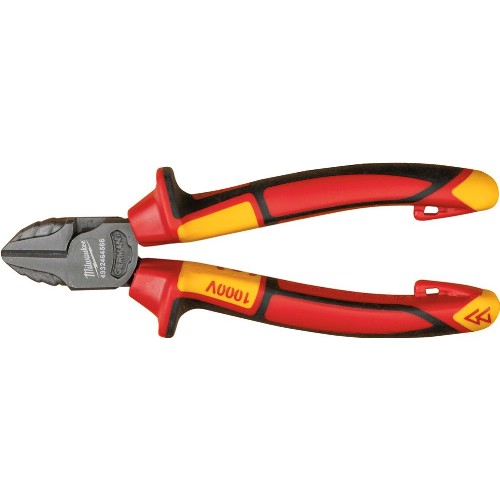

Insulated side cutter with induction-hardened inserts. Tested and approved for work under voltage up to 1000 V according to ISO 5749, IEC 60900. Black oxidized and anti-rust treated. Made of high-quality steel. Ergonomically designed handles in two-component plastic material. Progressive edge makes it possible to cut hard material closest to the joint, such as piano wire, and softer material such as copper wire and plastic-insulated wire closer to the tip. Screwed joint. The position of the screw enables high transmission with minimal power consumption. Slim, rounded jaws make it easier to access even in tight spaces.
The cutting capacity refers to piano wire 2100 N/mm².

Powerful side cutter insulated according to IEC 60900. Made of chrome-vanadium steel, forged and oil-hardened in several stages. With continuous joint and double bearing joint shaft. High cutting power with little effort through optimal adaptation of the cutting angle and gear ratio as well as ergonomic handle shape. Large opening width for thicker cable. Exact cut even on fine Cu wire. Universally applicable in assembly, repair and production.
The cutting capacity refers to piano wire 2300 N/mm².

Black oxidized and rust-protected special steel. With insulated handles approved for work under voltage up to 1000 volts. Approved according to SEN, VDE 0680, IEC 900. With adjusting screw for desired wire diameter up to 5 mm.
Cutting capacity:
Cable: 0.5-5.0 mm.
Copper wire : 0.05-10.0 mm².

Enkomponentsisolering för arbeten under spänning upp till 1000 volt.

Producerade och testade i enlighet med internationell standard IEC900 samt VDE norm DIN EN60 900.
Varje verktyg utsätts för en serie av tester innan godkännande:
10 000 volt belastning under 3 minuter (10 gånger mer än normal användning)
Värme / flamtest
Penetrations belastningstest
Drag / fasthållningstest

Tång DIN standard: 5746

Attribut

• Längd mm: 160

Comfort handle. With adjusting screw for the desired wire diameter up to 5 mm. With spring. Forged tool steel. Polished head.

Insulated screwdriver for hex screw.
Approved for work under voltage up to 1000 V.
Complies with IEC 60900, DIN-EN 60900, EN 60900, VDE 0682 part 201.
Evaluation and tests of screwdrivers are carried out in accordance with latest national and international standards:
- individual tests in water bath with 10 kV voltage.
- date stamped with year of manufacture.
- intensive cold tests.
Round blade of high quality steel. Black oxidized tip for maximum precision. Ergonomically developed three-component handle made of polypropylene and thermoplastic elastomer. Permanent color marking at both ends of the handles for easy identification of the correct screw tip.
DIN 7439. Tip DIN ISO 2936.

Insulated screwdriver for Pozidriv® screw.
Approved for work under voltage up to 1000 V. Complies with IEC 60900, DIN-EN 60900, EN 60900, VDE 0682 part 201.
Evaluation and tests of screwdrivers are carried out in accordance with the latest national and international standards:
- individual tests in water bath with 10 kV voltage.
- date stamped with year of manufacture.
- intensive cold tests.
Round blade of high quality steel. Black oxidized tip for maximum precision. Ergonomically developed three-component handle made of polypropylene and thermoplastic elastomer. Permanent color marking at both ends of the handles for easy identification of the correct screw tip.
BE-8840S with double grip.
DIN 7438. Tip DIN ISO 8764-1, ISO 8764-1.

Insulated screwdriver for straight slots. Adapted for work under voltage up to 1000 V. Round insulated blade of hardened vanadium steel. Ergonomic two-component handle.
Tested and approved according to VDE GS 1000V 14 IEC60900:2004.

Insulated screwdriver for Torx® screw.
Approved for work under voltage up to 1000 V.
Complies with IEC 60900, DIN-EN 60900, EN 60900, VDE 0682 part 201.
Evaluation and tests of screwdrivers are carried out in in accordance with the latest national and international standards:
- individual tests in water bath with 10 kV voltage.
- date stamped with year of manufacture.
- intensive cold tests.
Round blade of high quality steel. Black oxidized tip for maximum precision. Ergonomically developed three-component handle made of polypropylene and thermoplastic elastomer. Permanent color marking at both ends of the handles for easy identification of the correct screw tip.

Screwdriver set with 6 insulated screwdrivers, VDE-tested according to DIN EN 60900 1000 V. Ergonomic two-component grip. Handle shape that prevents rolling.
Contents:
Screwdriver for slotted screw 0.4x2.5mm
Screwdriver for slotted screw 0.8x4.0mm
Screwdriver for PlusMinus Phillips slot PH1
Screwdriver for PlusMinus Phillips slot PH2
Screwdriver for PlusMinus Pozidriv slot PZ1
Screwdriver for PlusMinus Pozidriv slot PZ2

Black-oxidized and rust-protected chrome vanadium steel with induction-hardened cutting edges. New design with rounder shaped jaws for better accessibility. Tongs with so-called open joint, where the distance from the joint center to the edges is reduced, something that increases gearing and cutting power. With insulated handles approved for work under voltage up to 1000 V. The cutting edges are specially made for cutting hard materials, such as piano wire and spring steel wire. Gripping surface to fit both round and flat materials.
The cutting capacity refers to hard steel wire 2100 N/mm².
ISO 5745, DIN 5745.
Approved according to CEI/IEC 900, EN 60900 , VDE 0680.
